Nitronic 60 Alloy 218 UNS S21800 WN SO Blind flange forging disc ring

Brand Name : HT

Model Number : Nitronic 60 WN flange

Certification : ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 100-100/piece

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10000 pcs/quarter

Delivery Time : 30 days

Packaging Details : wooden case or wooden pallet

Type1 : Nitronic 60 WN flange

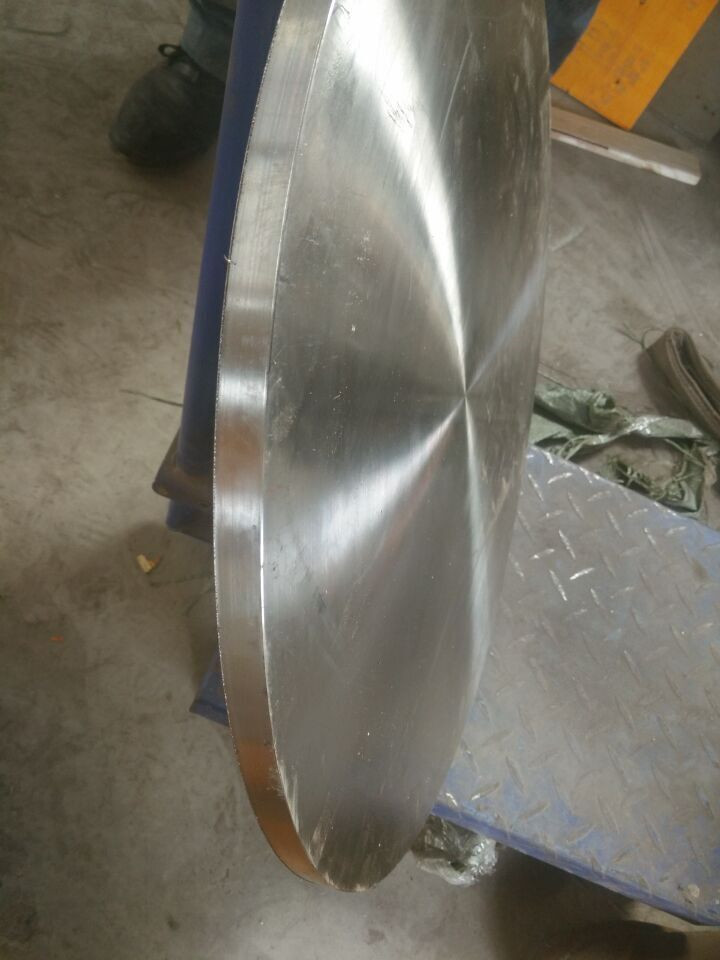

Type2 : Nitronic 60 blind flange

Type3 : Nitronic 60 SW flange

Type4 : Nitronic 60 SO flange

Contact Now

Nitronic®60, or N-60 is known for its excellent galling resistance, even at elevated temperatures. The additions of 4% silicon and 8% manganese inhibit wear, galling, and fretting. It is commonly used for various fasteners and pins that require strength and resistance to galling. It maintains decent strength up to temperatures of 1800°F and has oxidation resistance similar to that of 309 stainless steel. The general corrosion resistance is between that of 304 and 316 stainless steel.

Chemistry

	Ni	Cr	Mn	Si	C	N	S	P	Fe
MIN	8.0	16.0	7.0	3.5	-	0.08	-	-	-
MAX	9.0	18.0	9.0	4.5	0.10	0.18	0.03	0.06	Balance

Specifications

AMS 5848
ASME SA 193, ASME SA 479
ASTM A 193, ASTM A 193 Class 1C, ASTM A 276, ASTM A 479
UNS S21800

Inventory

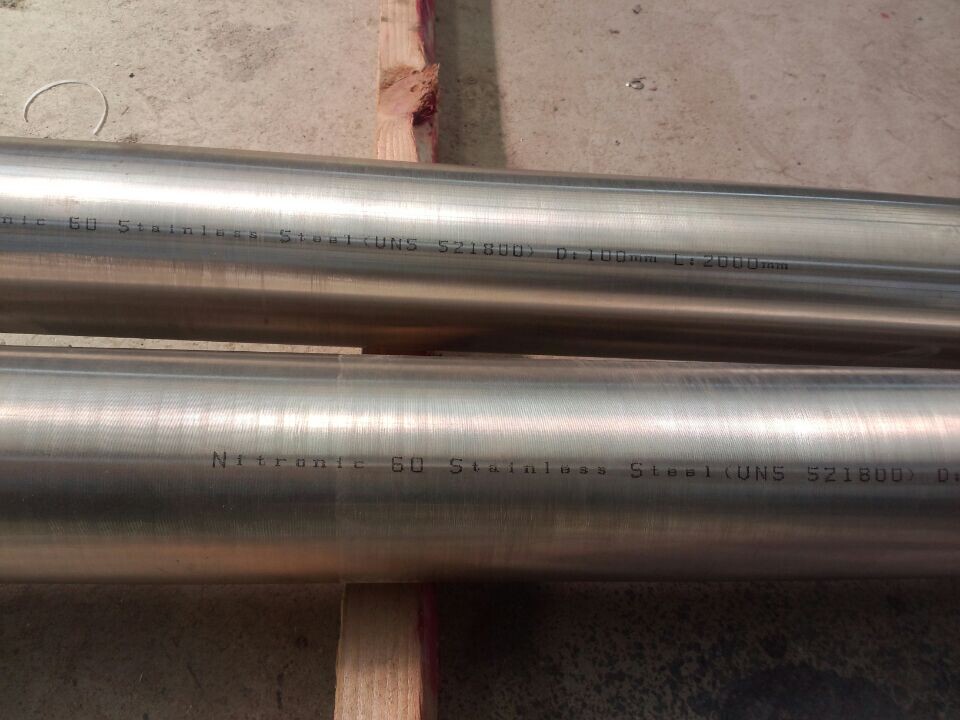

Nitronic®60 Round Bar

Common Trade Names

N-60 Stainless

Features

· Wear and galling resistant alloy

Applications

· Fasteners

· Pins and bushings

· Wear rails

· Roller bearings

· Pump components

Physical Properties

Density: 0.275 lb/inch3
Electrical Resistivity: 589 ohm circ-mil/ft

Temperature, °F	70	200	400	600	800	1000	1200	1400	1600	1800
Coefficient of Thermal Expansion, in/in°F x 10-6	-	8.8	9.2	9.6	9.8	10.0	10.3	10.5	10.7	11.0
Modulus of Elasticity, psi X 106 STA	-	26.2	-	-	-	-	-	-	-	-

* 70°F to indicated temperature.

Mechanical Properties

Minimum Specified Properties, ASTM A 276 Bar

Ultimate Tensile Strength, ksi	95
0.2% Yield Strength, ksi	50
Elongation, %	35
Reduction of Area, %	55
Hardness MAX, Brinell	241

Typical Tensile Properties Annealed Bar 3/4 - 1"

Temperature, °F	68	200	400	600	800	1000	1200	1400	1600
Ultimate Tensile Strength, ksi	106.5	98.2	84.4	80.5	78.3	75.4	66.6	49.8	30.2
0.2% Yield Strength, ksi	56.5	44.4	32.8	29.7	29.0	28.0	28.1	25.3	16.4
Elongation, 2%	61.7	63.3	64.0	59.6	65.5	52.2	48.2	47.1	72.8

Nitronic®is a registered trademark of AK Steel.

We can provide Nitronic 60 material in the form of flange, fittings, pipes, fasteners.
